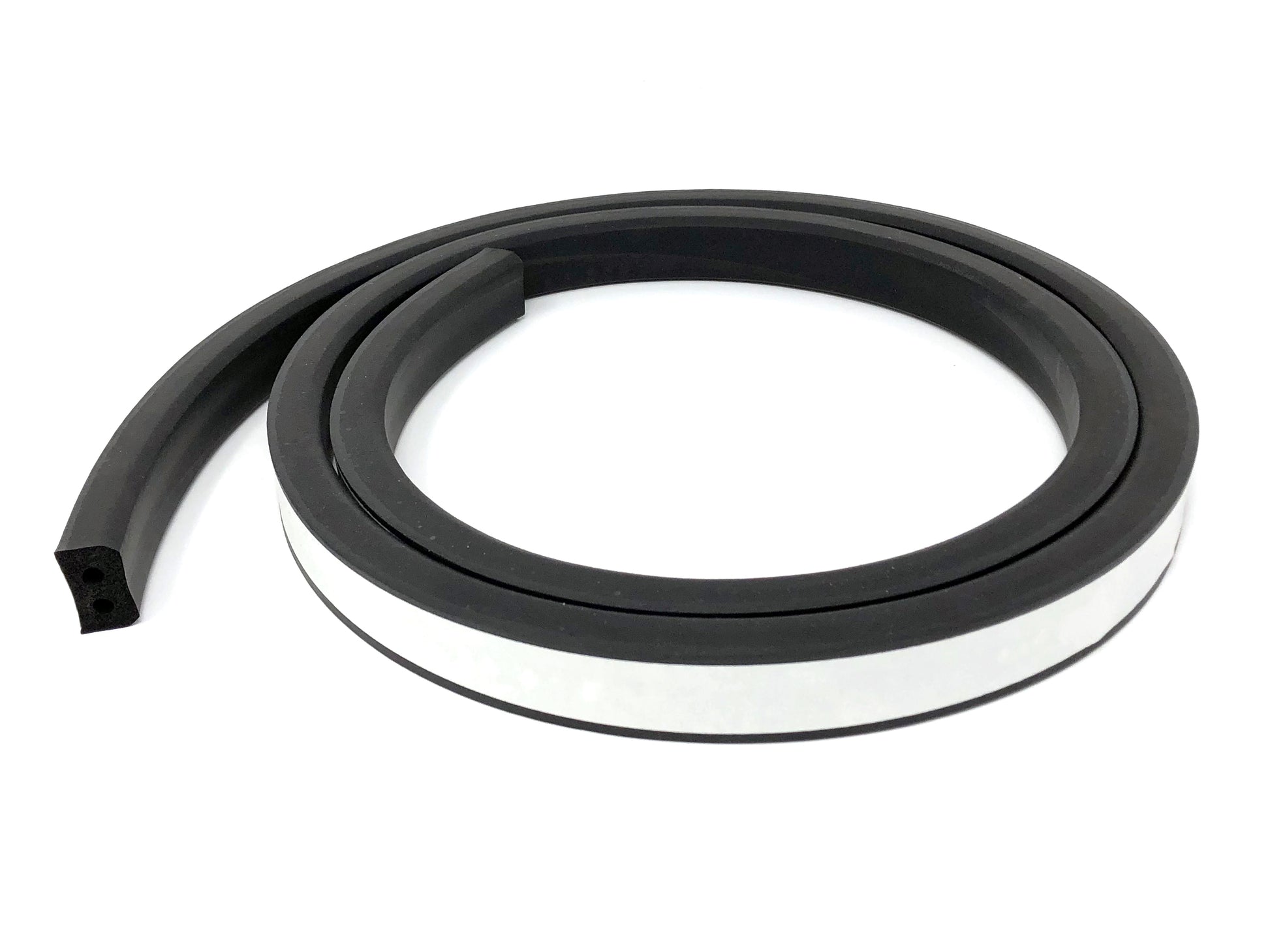

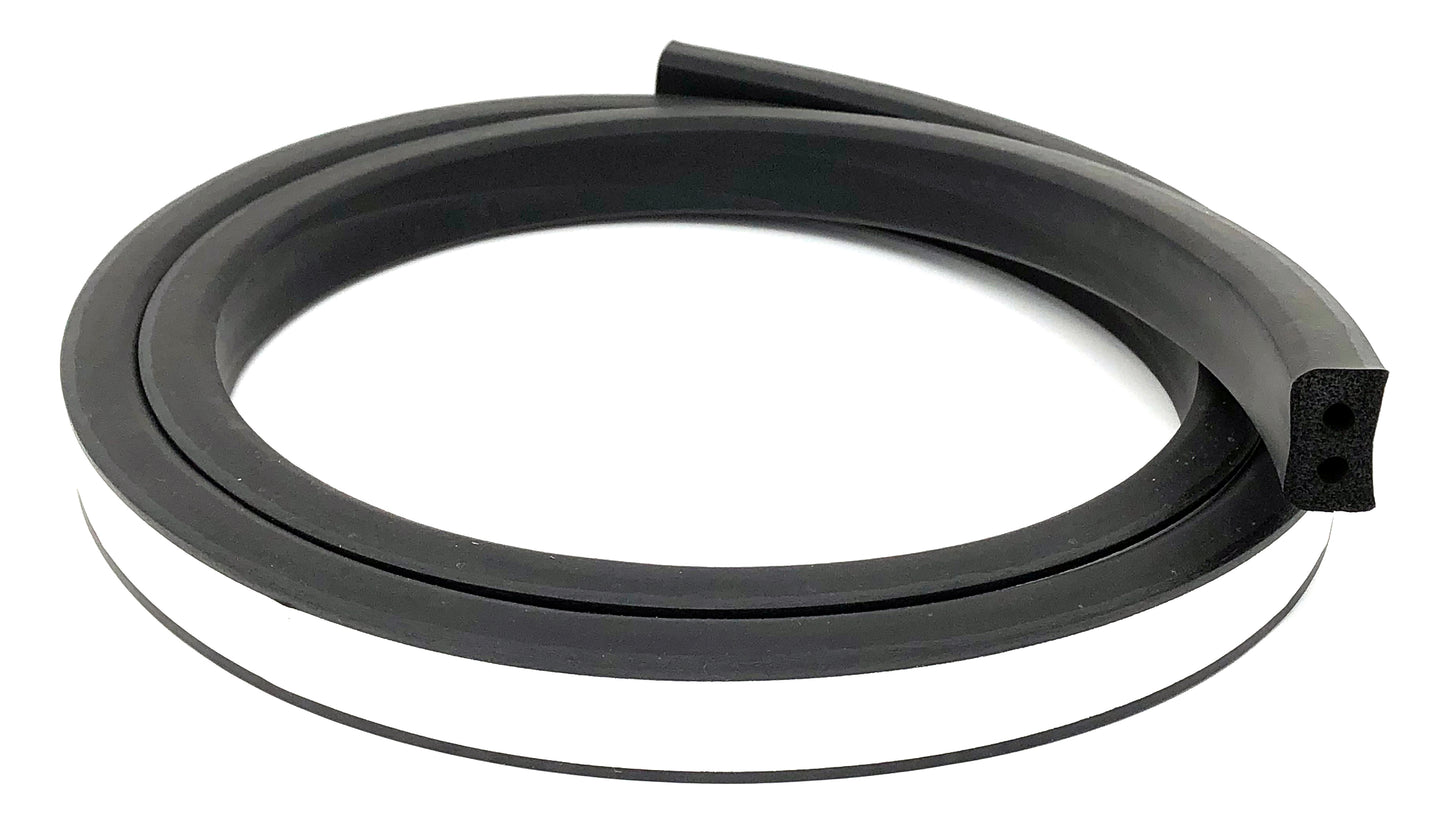

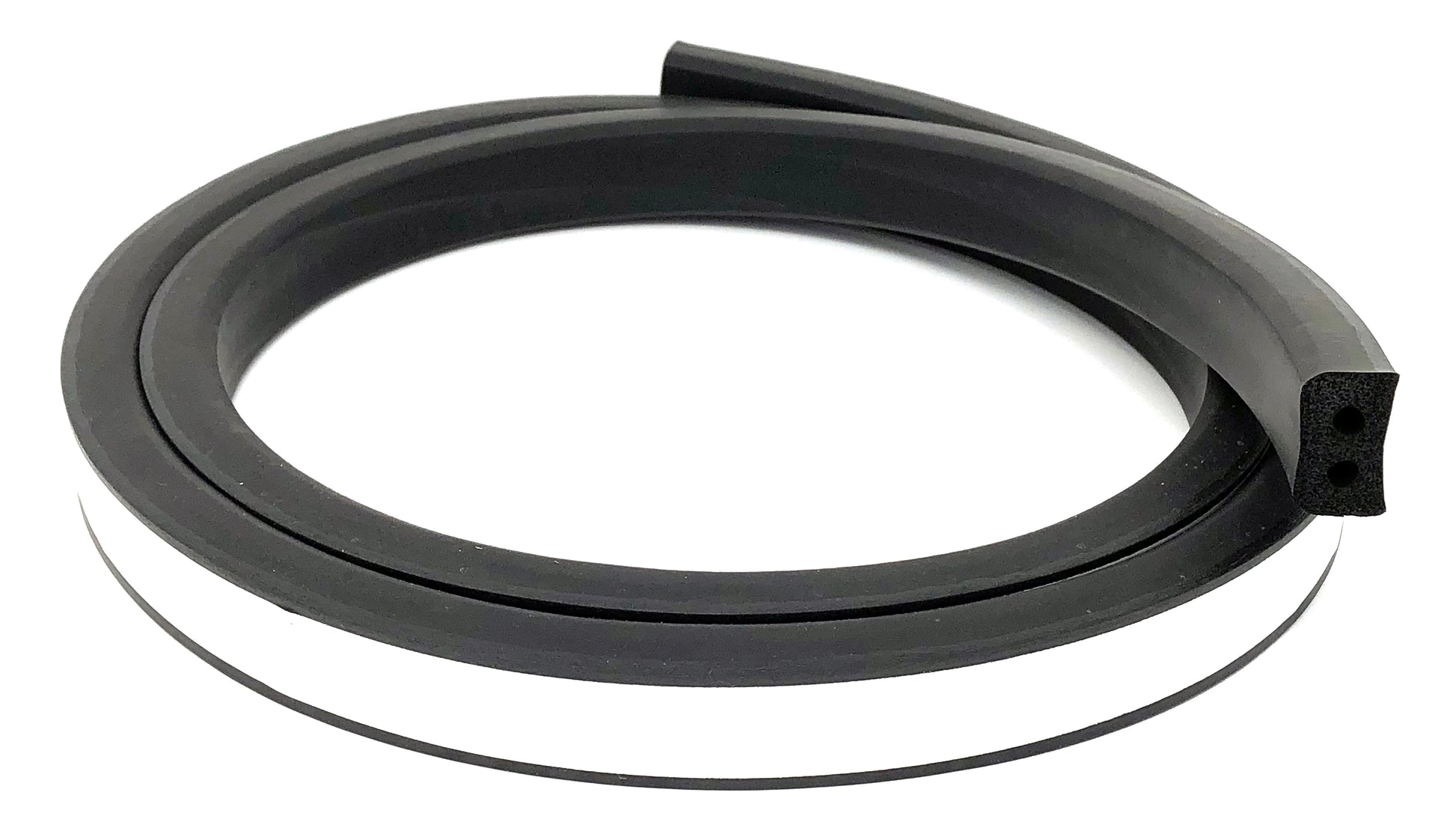

Front Rail Seal™ 6ft EPDM Rubber for Truck Cap, Camper Shell, Topper
ESI

Front Rail Seal™ 6ft EPDM Rubber for Truck Cap, Camper Shell, Topper

Regular price $13.95 $0.00 Unit price per
Shipping calculated at checkout.

Dimension are 72" L x .750" W x .550" H

Excellent compression set resistance for maximum service life and vibration absorption.

Long-lasting automotive grade EPDM rubber is preferred by professional installers over PVC/foam seals.

No need to replace this seal every time your cap is removed.

Fills a height gap of .251" to .487" from the sidewalls to the front rail when mounting a truck cap. Can adhere to either the cap's front base rail or the truck's front bulkhead rail. Includes 3M 4298 adhesion promoter.

For the cap's side base rails install a high quality Extruded Solutions Truck Cap Seal 20ft (see choices below).

To determine if you need a Front Rail Seal measure the difference in height from the truck's side bed rails (including, if any, bed rail caps) to the truck's front bed rail.

  • If the height of the front rail gap is .250" or less, just install one Extruded Solutions quality EPDM rubber truck cap seal to all 3 rails (see choices below). No need for a Front Rail Seal.
  • If the height of the front rail gap is from .488" to .937" install Front Rail Seal XL 5 1/2ft, (ebay item: 221421463221) to the truck's front bulkhead rail and install a quality 20ft Extruded Solutions truck cap seal on the cap's side base rails (see choices below).

Extruded Solutions Truck Cap Seal choices:

"Super Cap Seal 23ft" or "Super Cap Seal 20ft". Measures 1 1/2" wide and fills all bed rail gaps. For truck caps that weigh 200 lbs or less.

"Premium Cap Seal XL 23ft" or "Premium Cap Seal XL 20ft". Measures 2" wide and fills small to medium bed rail gaps. For caps 200 lbs or less.

"Super Cap Seal XL 23ft" or "Super Cap Seal XL 20ft". Measures 2 1/8" wide and is for trucks with extra wide bed rails. Fills all bed rail gaps. For caps over 200 lbs.

"Ultra Cap Seal 23ft" or "Ultra Cap Seal 20ft". Measures 1 1/2" wide. Fills all bed rail gaps. For caps over 200 lbs.

All truck cap seal kits include seal, butyl tape, alcohol pads and detailed instructions for a professional installation.

IMPORTANT: To completely seal out dust and water install an Ultimate Tailgate Seal with Taper Seal® to the tailgate gap and sidewalls (ebay item: 321044348713).

MADE IN USA
