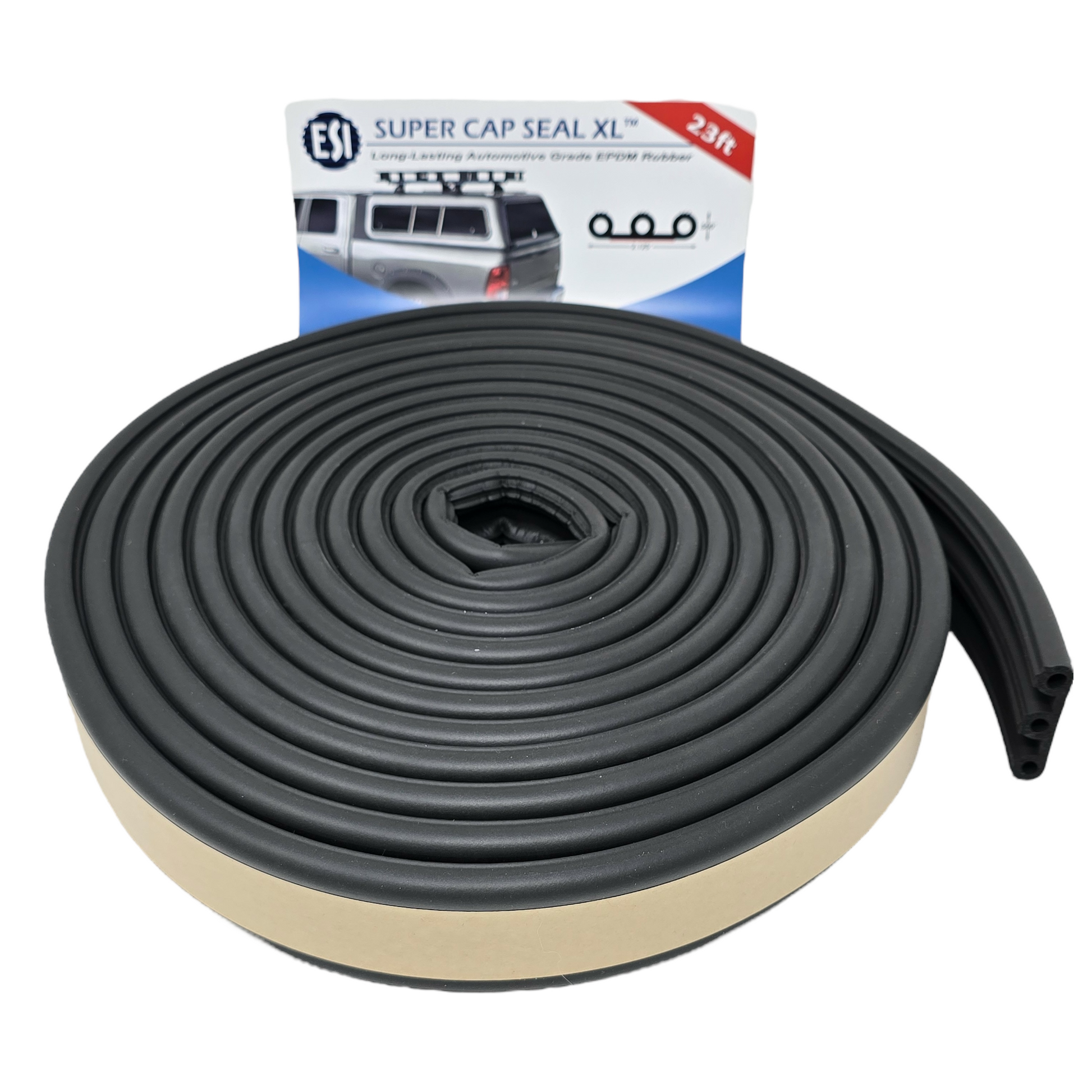

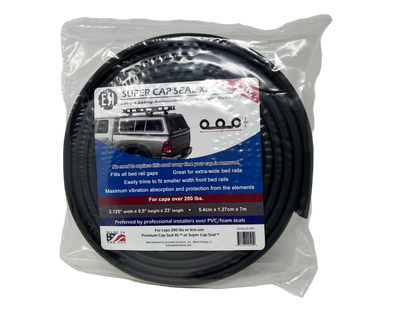

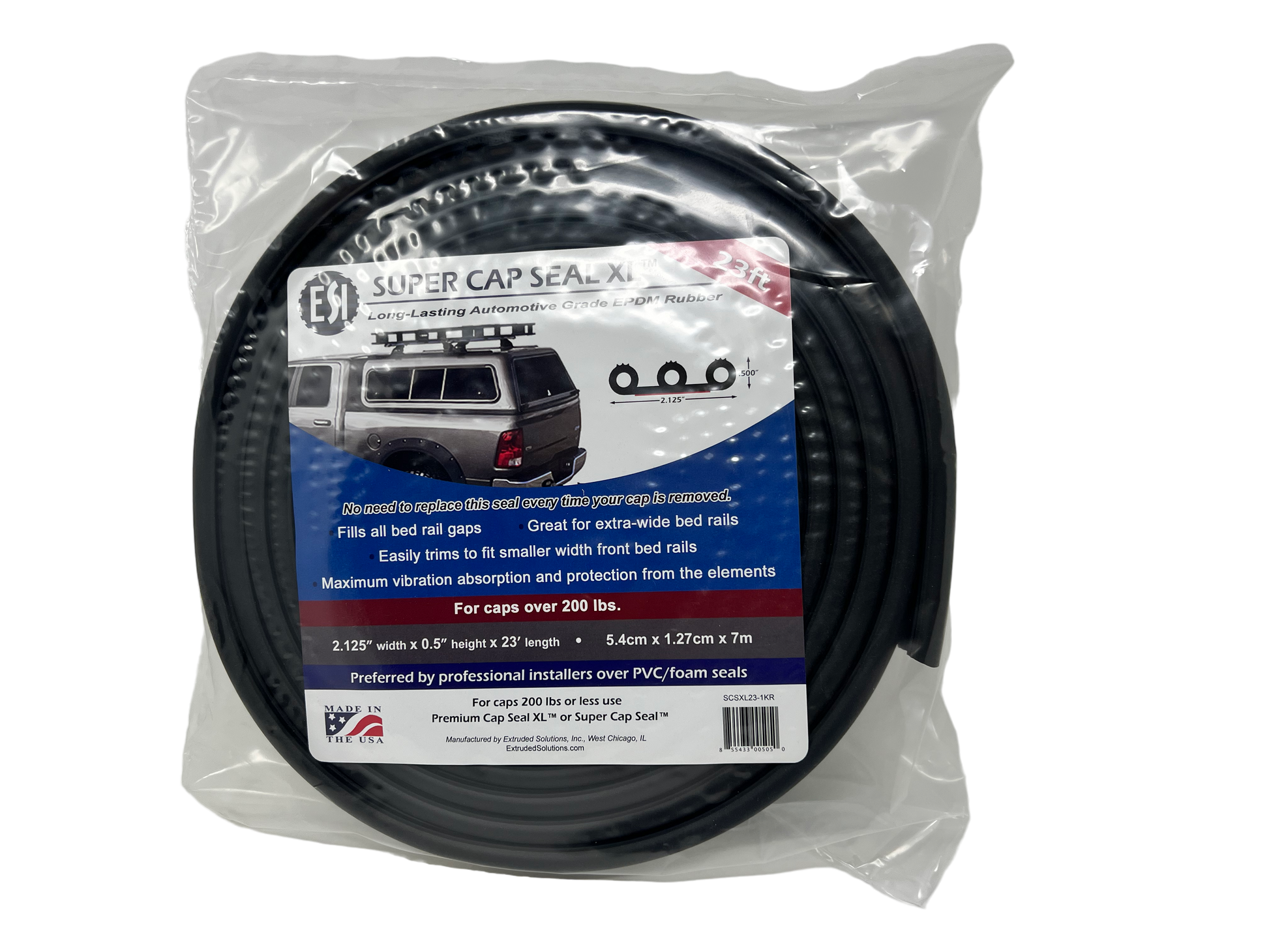

Super Cap Seal XL™ 23ft EPDM Rubber for Truck Cap, Camper Shell over 200 lbs.
Professional Installer Review: "We don't use the Super Cap Seal XL very often, but when we do it works great." Eric (General Manager, A & A Topper Sales & Service Center) Lakewood, CO
Excellent compression set resistance for maximum service life and vibration absorption. Long-lasting EPDM rubber is preferred by professional installers over PVC/foam seals.
No need to replace this seal every time your cap is removed.

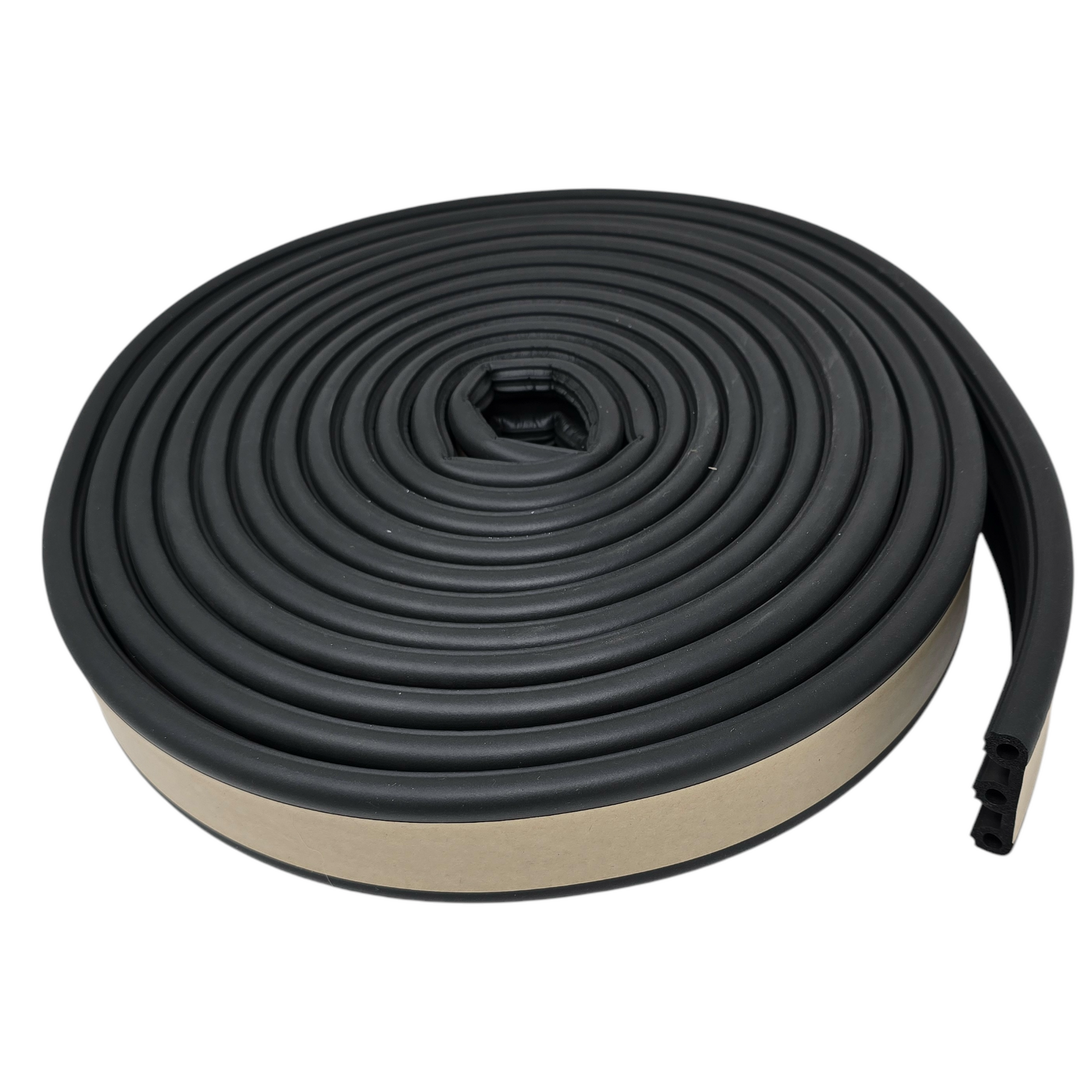

Super Cap Seal XL dimensions are 2 1/8" Width x 1/2" Height x 20' Length.
For 8ft beds use Super Cap Seal XL 23ft. For beds less than 8ft use Super Cap Seal XL 20ft

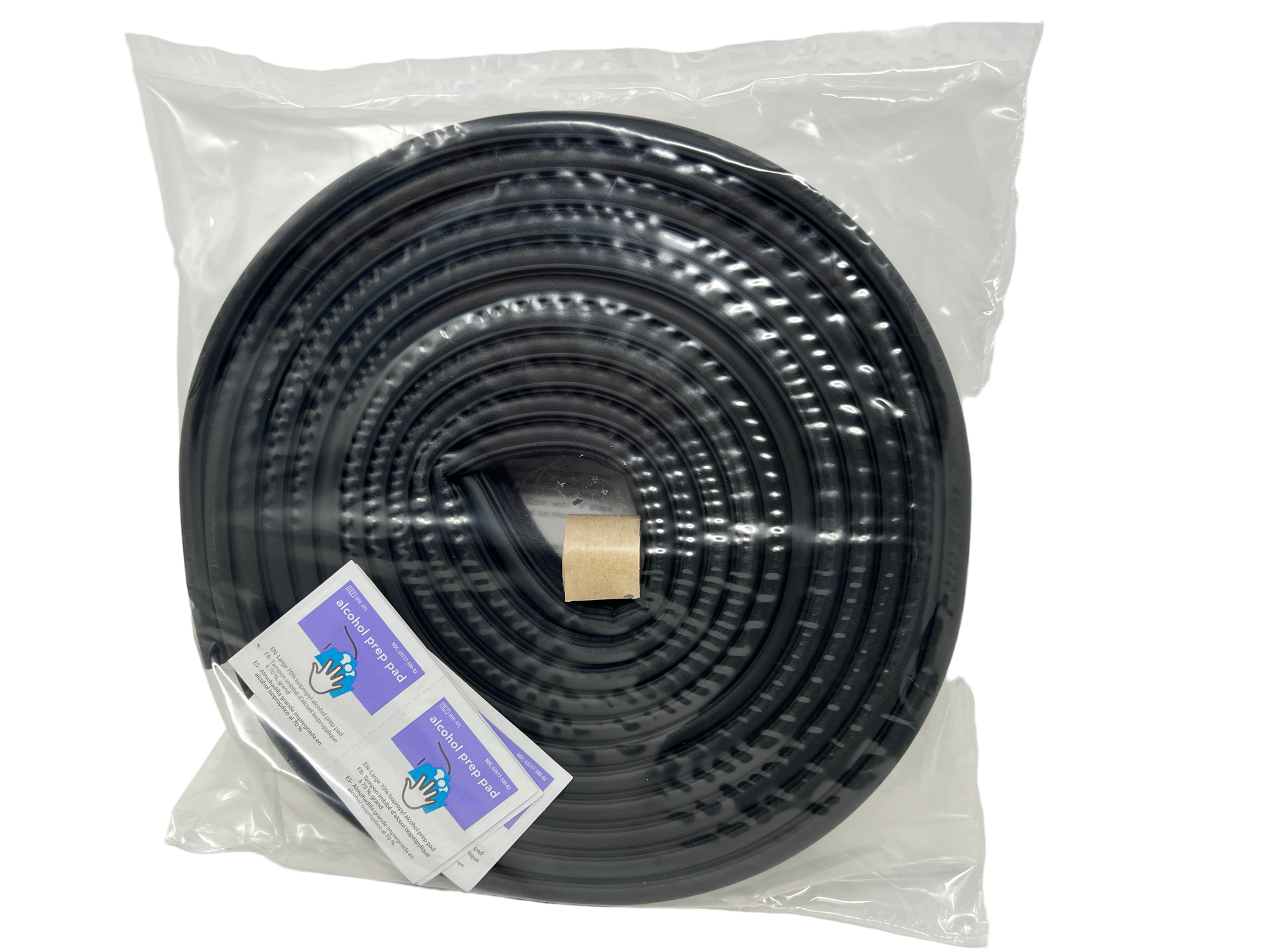

2 1/8" wide triple bulb seal gives you greater coverage area for filling all bed rail gaps. Use on caps that weigh more than 200 lbs. Easily trims to size to fit smaller width front bed rails. Complete kit includes seal, butyl tape, alcohol pads and detailed instructions for a professional installation.
NOTE: To determine if you need to use a Front Rail Seal 6ft measure the difference in height from the truck's side bed rails (including, if any, bed rail caps) to the truck's front bed rail. If the height of the gap is .250" or less install Super Cap Seal XL only. If the height of the gap is from .251" and .487" install Front Rail Seal on the cap's front base rail and install Super Cap Seal XL 20ft on the cap's side base rails. If the height of the gap is extra-large, from .488" to .875" install Super Cap Seal XL 20ft or 23ft on the cap's front and side base rails and install Front Rail Seal on the truck's front bed rail.
MADE IN U.S.A.
OTHER QUALITY TRUCK CAP SEALS BY Extruded Solutions:
"Super Cap Seal 23ft" measures 1 1/2" wide and fills all bed rail gaps. Use on truck caps that weigh 200 lbs. or less.
"Premium Truck Cap Seal 23ft" measures 2" wide and fills small to medium bed rail gaps. For caps 200 lbs. or less.
"Ultra Cap Seal 23ft" measures 1 1/2" wide and fills all bed rail gaps. For caps over 200 lbs.
To completely seal out dust and water install patented Ultimate Tailgate Seal with Taper Seal® to the tailgate gap and sidewalls. Save and buy the COMBO Pack Super Cap Seal XL 23ft and Ultimate Tailgate Seal with Taper Seal®.
Made in U.S.A.
